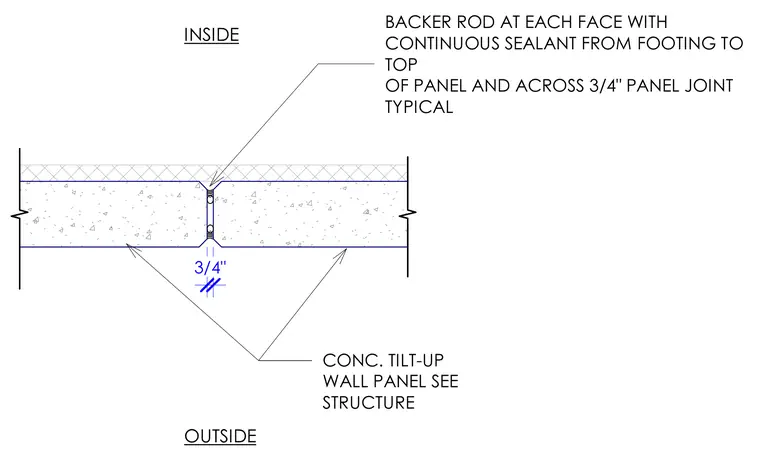

Two adjacent concrete tilt-up wall panels meet at a three-quarter-inch joint. A backer rod is installed at each face of the wall with continuous sealant extending from the footing to the top of the panel and across the joint.
BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 3/4" PANEL JOINT TYPICAL CONC. TILT-UP WALL PANEL SEE STRUCTURE 3/4" INSIDE OUTSIDE
