Architectural · A-RY4JJ

Steel Strut Penetration at Existing Column and Partition Wall

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Beams Roof / Floor Openings

Connections

Welded Connection

About this detail

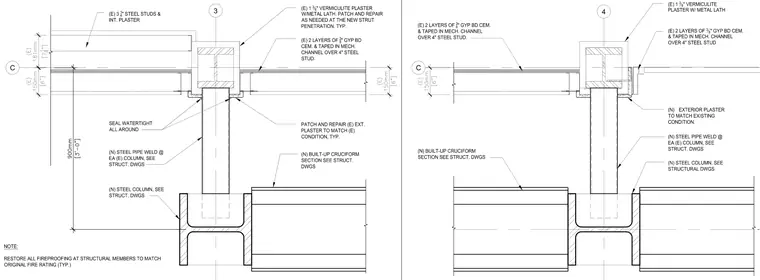

A new steel pipe strut welds at each side to an existing steel column, featuring new built-up cruciform sections detailed per structural drawings. The surrounding partition framing consists of three-and-a-quarter-inch steel studs with interior plaster and two layers of three-eighths-inch gypsum board taped in mechanical channels over four-inch steel studs. One-and-three-eighths-inch vermiculite plaster with metal lath finishes the column enclosure, requiring patch and repair as needed at the new strut penetration. Exterior plaster is matched to existing conditions and sealed watertight all around the penetration. All fireproofing at structural members must be restored to match the original fire rating.
