A four-inch diameter standard steel pipe column stands four feet tall above a concrete slab and finishes with a three-sixteenth-inch flush welded top cap. The pipe is painted safety yellow unless noted otherwise. A one-half-inch by ten-inch by ten-inch base plate secures the column to the concrete slab using four three-quarter-inch diameter Titen-HD concrete anchors.

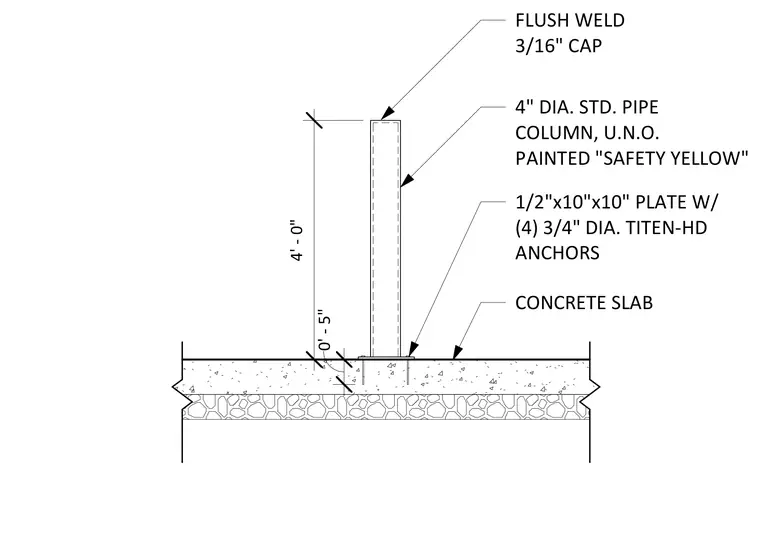

4" DIA. STD. PIPE COLUMN, U.N.O. PAINTED "SAFETY YELLOW" 4' - 0" CONCRETE SLAB 1/2"x10"x10" PLATE W/ (4) 3/4" DIA. TITEN-HD ANCHORS FLUSH WELD 3/16" CAP 0' - 5"
