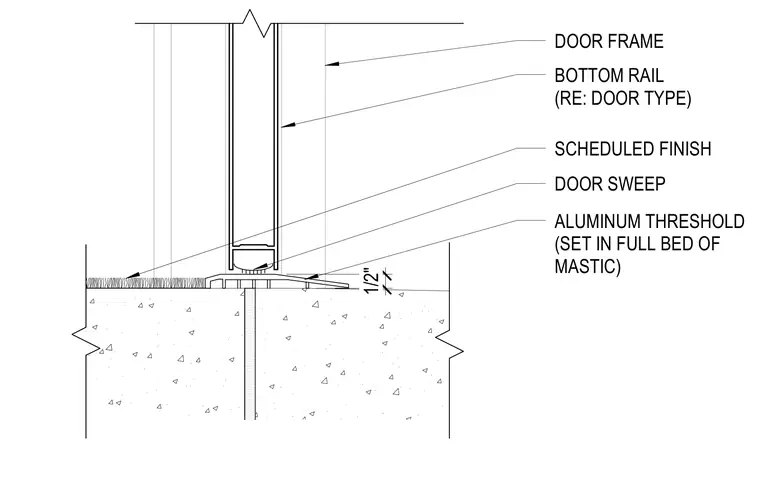

An aluminum threshold is set in a full bed of mastic at the base of a door opening. A door sweep attaches to the bottom rail of the door leaf, which aligns with the scheduled finish and door frame above. The assembly transitions between interior and exterior floor finishes across a one-half-inch profile.
DOOR SWEEP BOTTOM RAIL (RE: DOOR TYPE) ALUMINUM THRESHOLD (SET IN FULL BED OF MASTIC) DOOR FRAME 1/2" SCHEDULED FINISH
