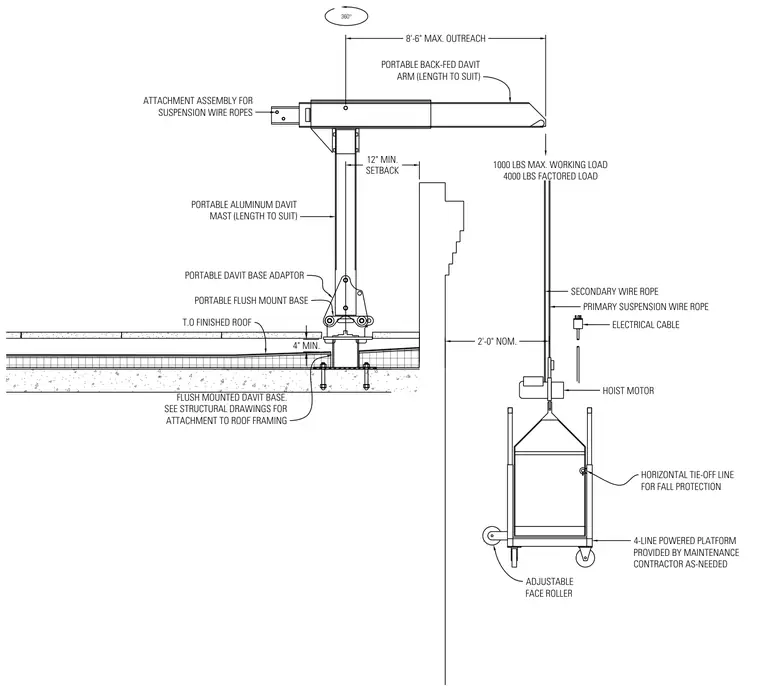

A portable aluminum davit mast and back-fed davit arm mount to a flush-mounted base embedded in the roof structure with a twelve-inch minimum setback from the parapet. The assembly supports a thousand-pound maximum working load and a four-thousand-pound factored load, carrying primary and secondary suspension wire ropes for a four-line powered platform. An adjustable face roller, hoist motor, electrical cable, and horizontal fall protection tie-off line complete the suspended maintenance system.
2'-0" NOM. 4-LINE POWERED PLATFORM PROVIDED BY MAINTENANCE CONTRACTOR AS-NEEDED ADJUSTABLE FACE ROLLER HOIST MOTOR PRIMARY SUSPENSION WIRE ROPE SECONDARY WIRE ROPE ELECTRICAL CABLE HORIZONTAL TIE-OFF LINE FOR FALL PROTECTION PORTABLE ALUMINUM DAVIT MAST (LENGTH TO SUIT) 8'-6" MAX. OUTREACH PORTABLE BACK-FED DAVIT ARM (LENGTH TO SUIT) 360° FLUSH MOUNTED DAVIT BASE. SEE STRUCTURAL DRAWINGS FOR ATTACHMENT TO ROOF FRAMING ATTACHMENT ASSEMBLY FOR SUSPENSION WIRE ROPES 1000 LBS MAX. WORKING LOAD 4000 LBS FACTORED LOAD 12" MIN. SETBACK PORTABLE DAVIT BASE ADAPTOR PORTABLE FLUSH MOUNT BASE T.O FINISHED ROOF 4" MIN.
