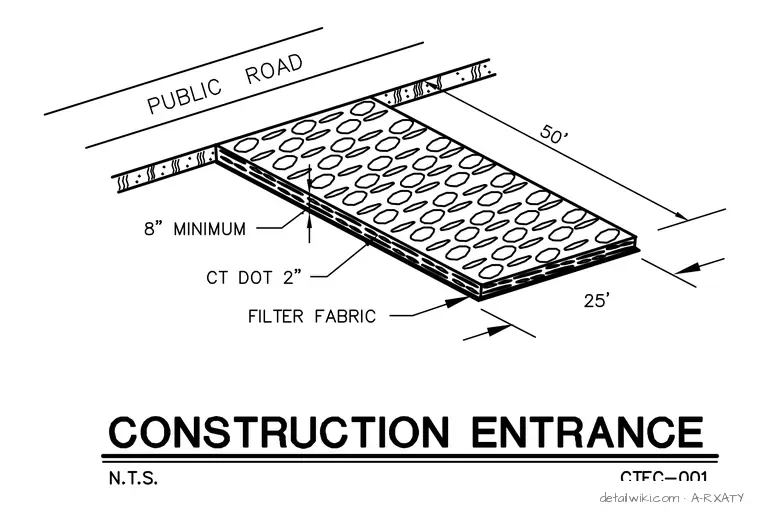

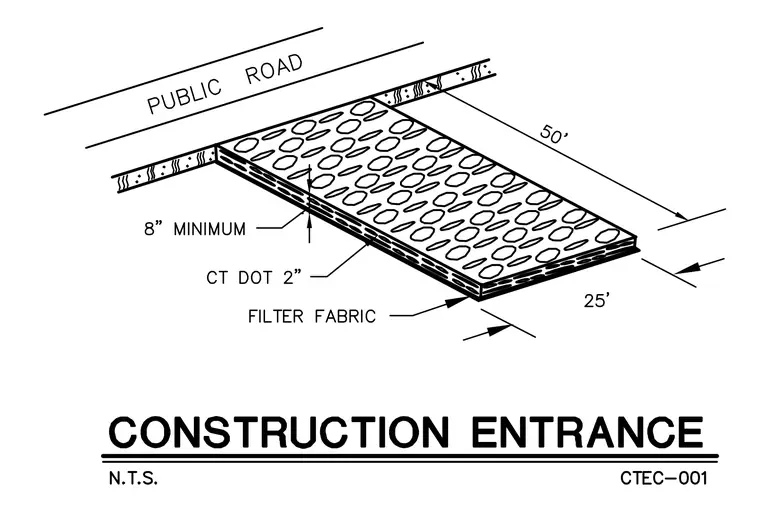

A temporary construction entrance pad connects a site to an adjacent public road with a specified length of fifty feet and a width of twenty-five feet. The pad consists of coarse stone aggregate laid over a geotextile filter fabric with a minimum thickness of eight inches. Aggregate sizing follows Connecticut Department of Transportation standards as indicated by CT DOT two inch stone.
