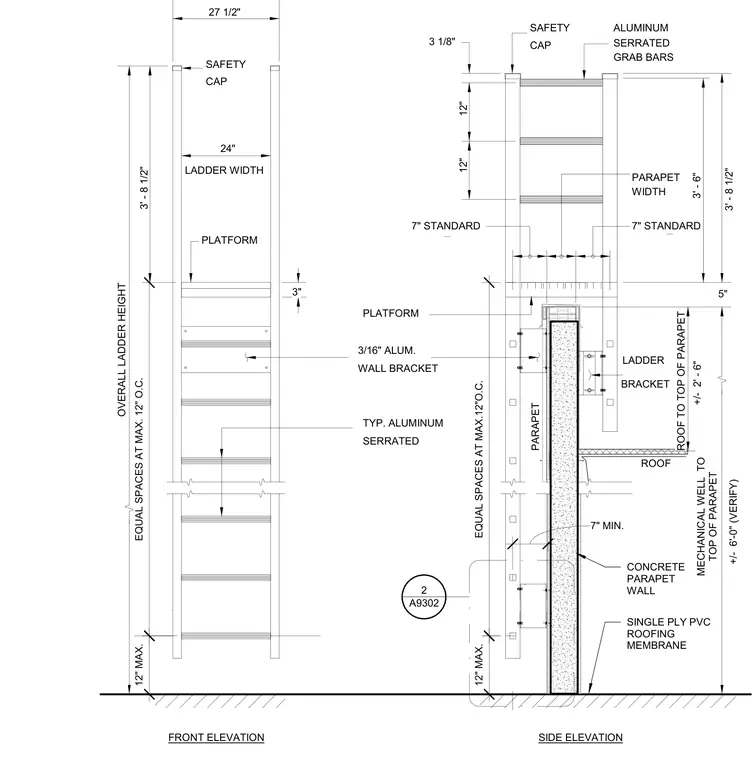

This elevation detail shows an aluminum roof access ladder mounted to a seven-inch minimum concrete parapet wall. The assembly features an overall ladder width of twenty-four inches with a total width of twenty-seven and one-half inches, including aluminum serrated grab bars and safety caps. Three-sixteenth-inch aluminum wall brackets secure the ladder to the parapet, with rung spacing set at a maximum of twelve inches on center. The ladder extends from the roof level past the top of the parapet, with a platform positioned at approximately six feet and safety grab bars extending three feet eight and one-half inches above the platform. Single-ply PVC roofing membrane is shown at the roof level intersecting the concrete parapet wall.
SIDE ELEVATION FRONT ELEVATION OVERALL LADDER HEIGHT 24" 27 1/2" TYP. ALUMINUM SERRATED SAFETY CAP ROOF TO TOP OF PARAPET +/- 2' - 6" 3' - 8 1/2" 12" 12" 3 1/8" GRAB BARS ALUMINUM SERRATED 3' - 8 1/2" PLATFORM 3" 5" PLATFORM +/- 6'-0" (VERIFY) MECHANICAL WELL TO TOP OF PARAPET PARAPET SAFETY CAP BRACKET LADDER SINGLE PLY PVC ROOFING MEMBRANE ROOF PARAPET 7" STANDARD 7" STANDARD LADDER WIDTH 3/16" ALUM. WALL BRACKET WIDTH 3' - 6" A9302 2 12" MAX. EQUAL SPACES AT MAX. 12" O.C. 12" MAX. EQUAL SPACES AT MAX.12"O.C. 7" MIN. CONCRETE PARAPET WALL
