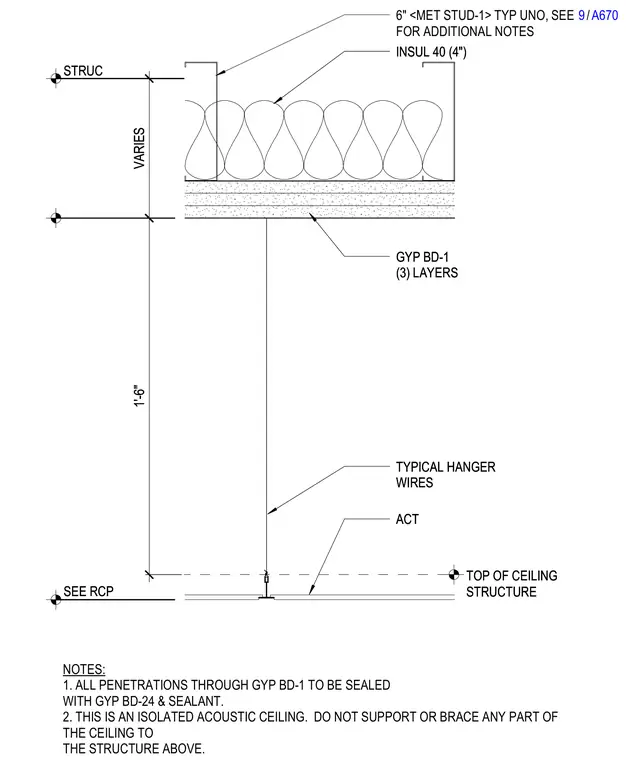

An isolated acoustic ceiling is suspended from the overhead structure using typical hanger wires spaced at one foot six inches. The ceiling assembly consists of three layers of gypsum board backed by four-inch insulation and six-inch metal studs, with all penetrations sealed using specific gypsum compound and sealant. This installation functions as an isolated acoustic assembly left independent without structural bracing tied back to the overhead framing.
TYPICAL HANGER WIRES SEE RCP STRUC VARIES 1'-6" ACT GYP BD-1 (3) LAYERS INSUL 40 (4") 6" <MET STUD-1> TYP UNO, SEE FOR ADDITIONAL NOTES TOP OF CEILING STRUCTURE TYPICAL HANGER WIRES SEE RCP STRUC VARIES 1'-6" ACT GYP BD-1 (3) LAYERS INSUL 40 (4") NOTES: 1. ALL PENETRATIONS THROUGH GYP BD-1 TO BE SEALED WITH GYP BD-24 & SEALANT. 2. THIS IS AN ISOLATED ACOUSTIC CEILING. DO NOT SUPPORT OR BRACE ANY PART OF THE CEILING TO THE STRUCTURE ABOVE. TOP OF CEILING STRUCTURE / 9 A670
