A concrete-filled metal stair pan with a one-and-a-half-inch concrete fill placed in the field over wire mesh reinforcement as required. The stair treads receive a specific finish material referenced as RT24, and the stair landing receives finish material RT22. A metal pipe railing system frames the stair, consisting of a one-and-a-half-inch diameter metal pipe top rail, a matching bottom rail, and one-inch diameter vertical pipe pickets spaced at four inches on center typically.

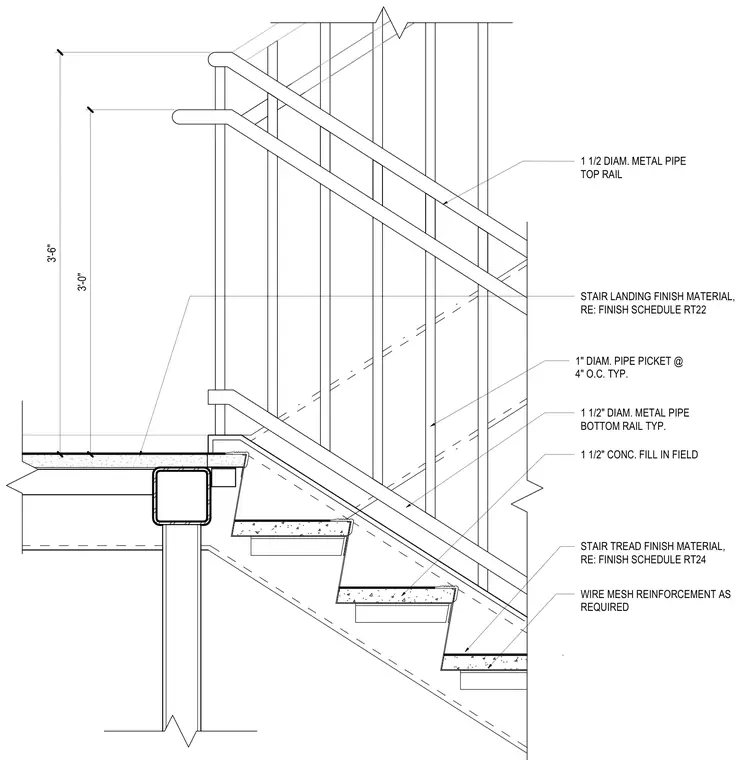

1 1/2" CONC. FILL IN FIELD WIRE MESH REINFORCEMENT AS REQUIRED 3'-6" 1 1/2 DIAM. METAL PIPE TOP RAIL 1 1/2" DIAM. METAL PIPE BOTTOM RAIL TYP. 1" DIAM. PIPE PICKET @ 4" O.C. TYP. 3'-0" STAIR TREAD FINISH MATERIAL, RE: FINISH SCHEDULE RT24 STAIR LANDING FINISH MATERIAL, RE: FINISH SCHEDULE RT22
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
