Architectural · A-RWPMJ

Cedar Siding and Metal Composite Panel Wall Assembly

Materials

Elements

Walls Waterproofing / Flashing Insulation Connections / Plates

About this detail

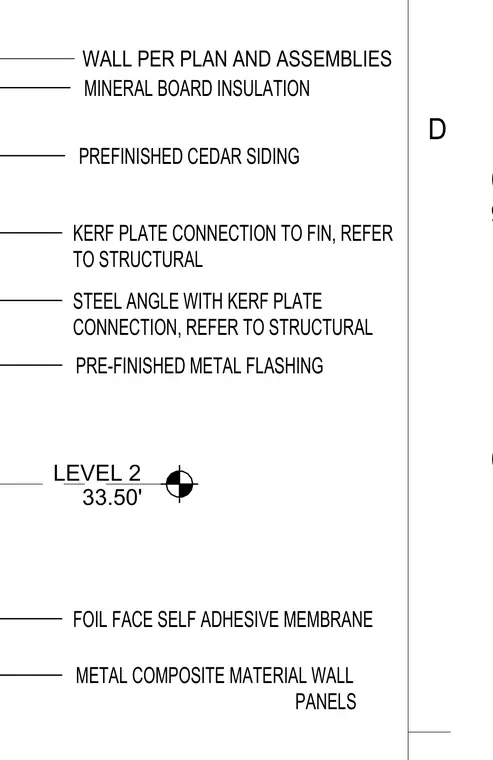

The exterior assembly incorporates prefinished cedar siding and metal composite material wall panels backed by mineral board insulation and a foil-faced self-adhering membrane. A steel angle with a kerf plate connection secures the cladding components, with structural connection details coordinated with structural engineering drawings. Pre-finished metal flashing provides weather protection at transitions, located near the Level 2 elevation benchmark at thirty-three feet six inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
