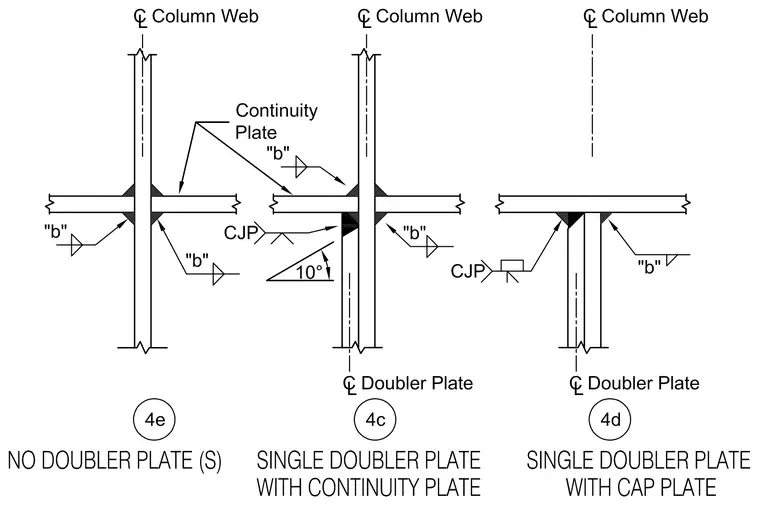

Three distinct steel column web connection details incorporating continuity plates and doubler plate configurations. The left detail features a column web with continuity plates welded using fillet welds designated by "b". The middle detail presents a single doubler plate with a continuity plate, incorporating complete joint penetration welds and a ten-degree slope transition. The right detail contains a single doubler plate with a cap plate attached via complete joint penetration and fillet welds.
