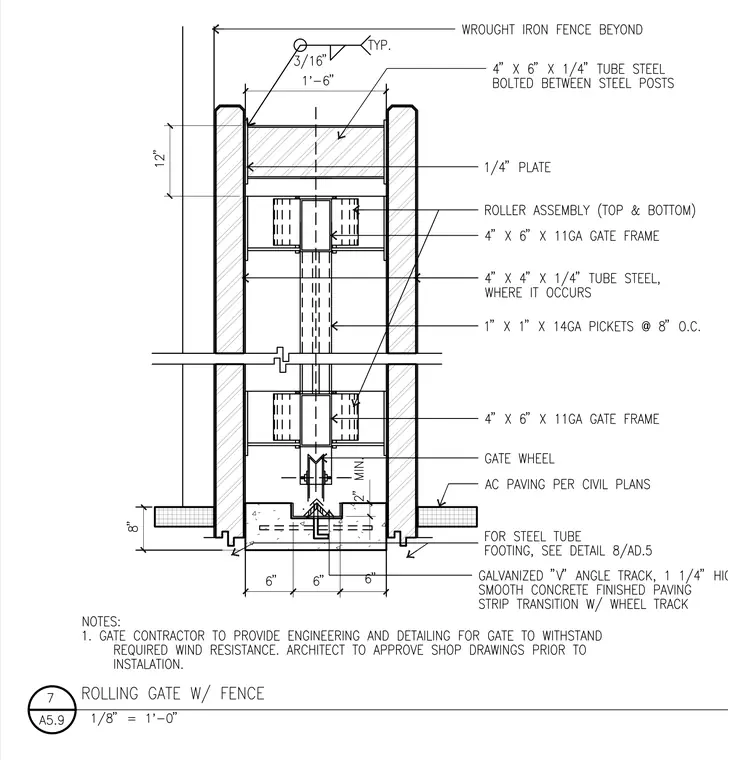

This rolling gate assembly features a framework of 4" x 6" by 11-gauge gate frames and 4" x 4" by 1/4" tube steel members where required, detailed with 1" x 1" by 14-gauge pickets spaced at 8 inches on center. The gate incorporates top and bottom roller assemblies, 1/4-inch plates, and a gate wheel guided by a galvanized 1-1/4-inch "V" angle track set over smooth finished concrete paving. The surrounding posts consist of 4" x 6" by 1/4" tube steel bolted between steel posts, with wrought iron fence visible beyond. The base detail interfaces with asphalt concrete paving per civil plans and requires a steel tube footing per detail 8/AD.5.
