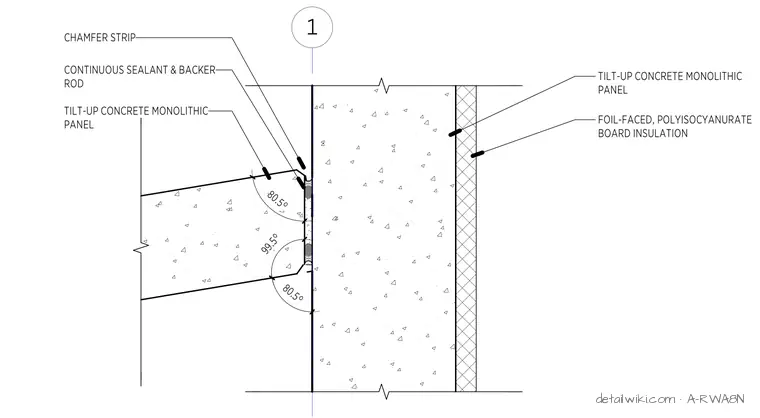

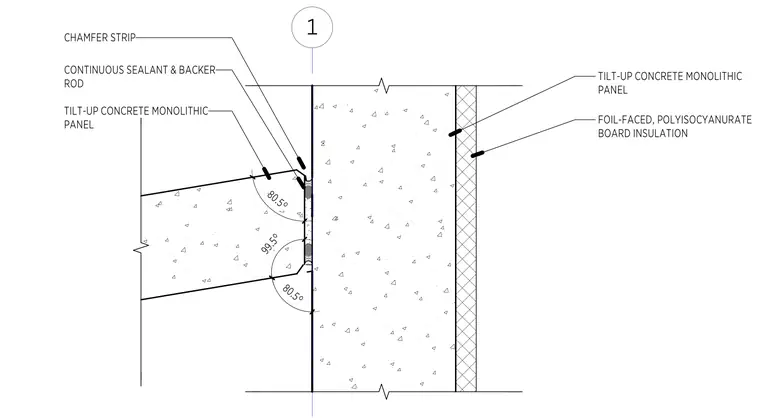

This corner assembly joins two tilt-up concrete monolithic panels at an obtuse angle. The joint is formed with a chamfer strip at the exterior face to create a clean edge. A continuous sealant and backer rod are installed within the joint gap to provide a weather-tight seal. The interior face of the panels is lined with foil-faced polyisocyanurate board insulation.
