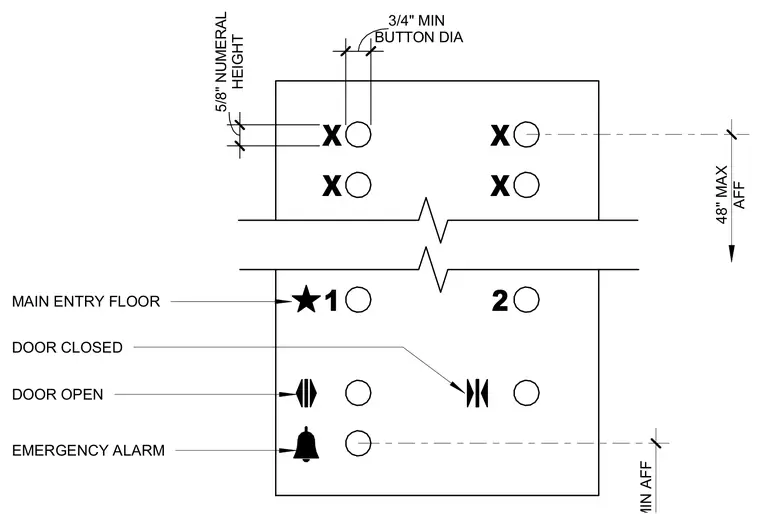

Elevator control panel detail indicating mounting heights and button configurations for accessibility compliance. The highest emergency control or button is located at a maximum of forty-eight inches above the finished floor. Individual buttons feature a minimum diameter of three-quarters of an inch with five-eighths inch high raised numerals. Standard operational symbols indicate main entry floor, door open, door closed, and emergency alarm functions.
X X X X 1 2 HEIGHT 5/8" NUMERAL BUTTON DIA 3/4" MIN EMERGENCY ALARM DOOR OPEN DOOR CLOSED MAIN ENTRY FLOOR 48" MAX AFF
