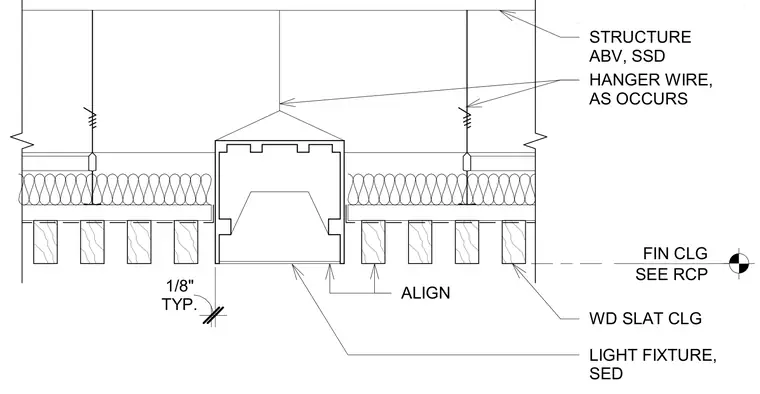

A light fixture is suspended alongside a wood slat ceiling, positioned to align with the finished ceiling plane per the reflected ceiling plan. Hanger wires secure both the ceiling framework and the lighting fixture directly to the structure above as required. The light fixture features a one-eighth inch clearance typical detail at the wood slats. Finished ceiling heights and alignments are coordinated directly with the reflected ceiling plan.
HANGER WIRE, AS OCCURS FIN CLG SEE RCP WD SLAT CLG STRUCTURE ABV, SSD ALIGN TYP. 1/8" LIGHT FIXTURE, SED
