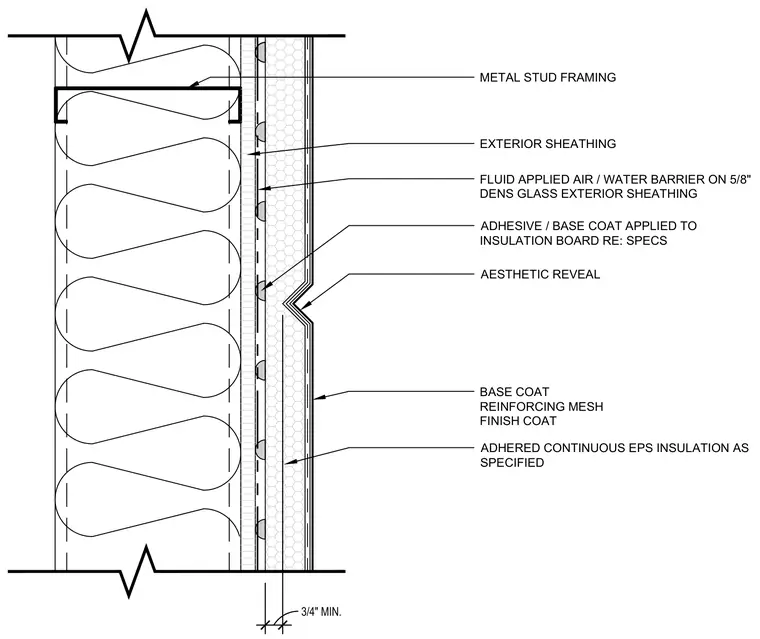

Metal stud framing supports five-eighths inch Dens Glass exterior sheathing coated with a fluid-applied air and water barrier. Adhered continuous expanded polystyrene insulation board is secured with an adhesive and base coat per specifications. A reinforcing mesh embedded within the base coat and a finish coat complete the exterior face, incorporating a three-quarter-inch minimum aesthetic reveal.
METAL STUD FRAMING EXTERIOR SHEATHING FLUID APPLIED AIR / WATER BARRIER ON 5/8" DENS GLASS EXTERIOR SHEATHING ADHESIVE / BASE COAT APPLIED TO INSULATION BOARD RE: SPECS ADHERED CONTINUOUS EPS INSULATION AS SPECIFIED BASE COAT REINFORCING MESH FINISH COAT AESTHETIC REVEAL 3/4" MIN.
