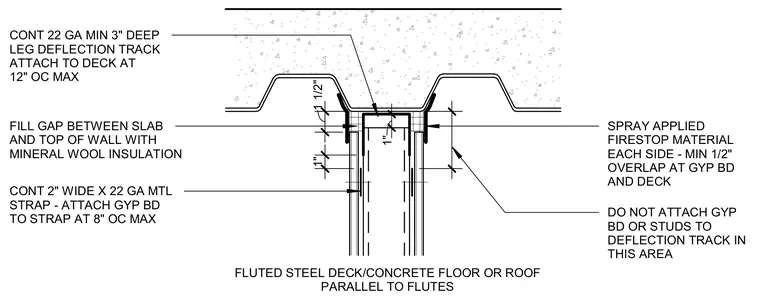

A continuous 22-gauge minimum 3-inch deep leg deflection track is attached to the fluted steel deck at a maximum of 12 inches on center. The gap between the concrete slab and the top of the wall is filled with mineral wool insulation. Spray-applied firestop material is applied to each side with a minimum 1/2-inch overlap at the gypsum board and deck, ensuring gypsum board and studs are left unattached to the deflection track in this designated area. A continuous 2-inch wide by 22-gauge metal strap is provided, with gypsum board attached to the strap at a maximum of 8 inches on center.
1" 1" 4 47/256" FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PARALLEL TO FLUTES DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA SPRAY APPLIED FIRESTOP MATERIAL EACH SIDE - MIN 1/2" OVERLAP AT GYP BD AND DECK CONT 2" WIDE X 22 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX FILL GAP BETWEEN SLAB AND TOP OF WALL WITH MINERAL WOOL INSULATION CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX 1 1/2"
