Men and boys restroom door sign installation standards, specifying a flush-mounted triangular geometric symbol and accompanying text signage. The triangular symbol measures twelve inches on all sides with a one-quarter inch typical thickness, featuring an upward-pointing vertex with a radius between one-eighth and one-quarter inch. The sign requires a contrasting background color with seventy percent contrast relative to the door color. The raised characters are positioned with a maximum height of sixty inches above the finished floor to the baseline of the highest line of characters. Text and symbol dimensions include a six inch typical spacing and a ten inch square frame.

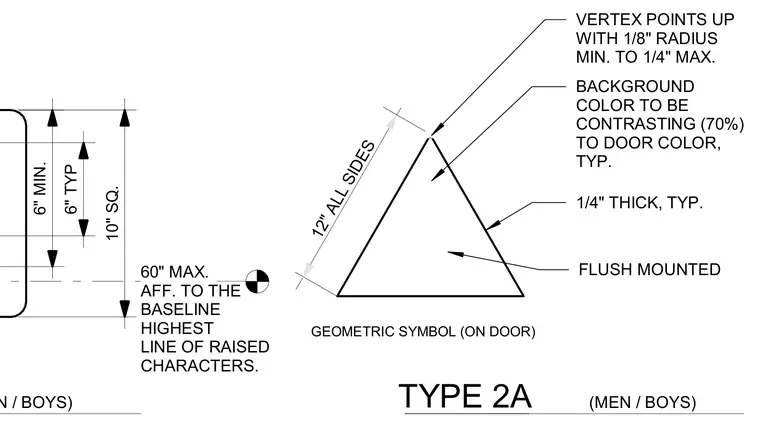

TYPE 2A (MEN / BOYS) 6" TYP 10" SQ. 6" MIN. 60" MAX. AFF. TO THE BASELINE HIGHEST LINE OF RAISED CHARACTERS. BACKGROUND COLOR TO BE CONTRASTING (70%) TO DOOR COLOR, TYP. 1/4" THICK, TYP. 12" ALL SIDES (MEN / BOYS) GEOMETRIC SYMBOL (ON DOOR) FLUSH MOUNTED VERTEX POINTS UP WITH 1/8" RADIUS MIN. TO 1/4" MAX.
