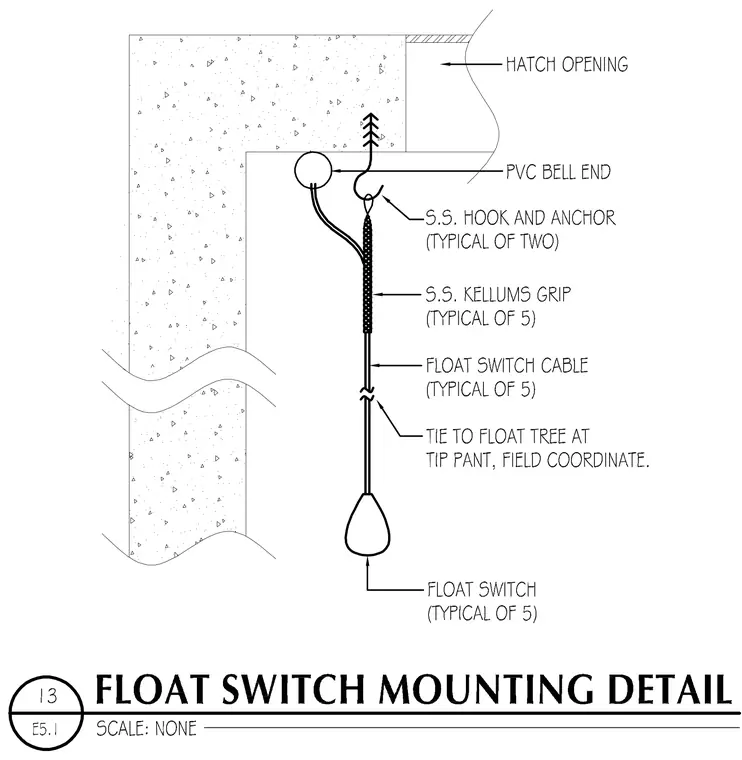

A float switch cable is suspended inside a concrete hatch opening and secured using a stainless steel Kellums grip typical of five. The grip connects to a stainless steel hook and anchor typical of two, which fastens into the concrete structural assembly. A PVC bell end surrounds the upper mounting point. The float switch cable extends downward to the float switch itself, with intermediate ties to a float tree.
