Cold-formed steel backing is fabricated from a 6-inch 14-gauge unpunched deep leg track spanning between vertical metal Cee studs. The track legs are cut and bent to form attachment tabs against the stud webs. Four number 10 self-tapping sheet metal screws with low-profile heads secure each end of the backing to the stud.

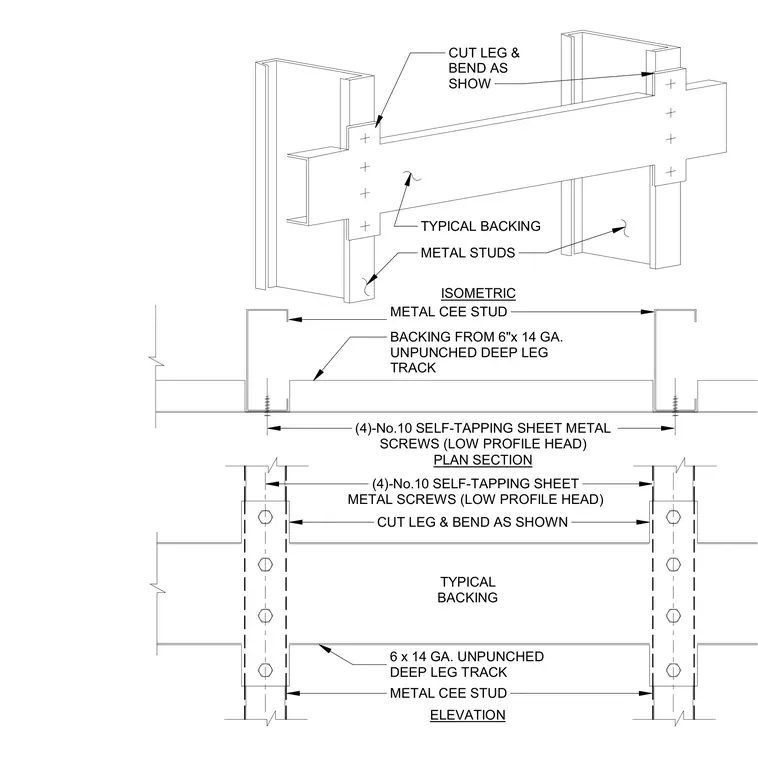

(4)-No.10 SELF-TAPPING SHEET METAL SCREWS (LOW PROFILE HEAD) BACKING FROM 6"x 14 GA. UNPUNCHED DEEP LEG TRACK METAL CEE STUD (4)-No.10 SELF-TAPPING SHEET METAL SCREWS (LOW PROFILE HEAD) METAL CEE STUD 6 x 14 GA. UNPUNCHED DEEP LEG TRACK CUT LEG & BEND AS SHOWN TYPICAL BACKING ELEVATION PLAN SECTION ISOMETRIC CUT LEG & BEND AS SHOW TYPICAL BACKING METAL STUDS
