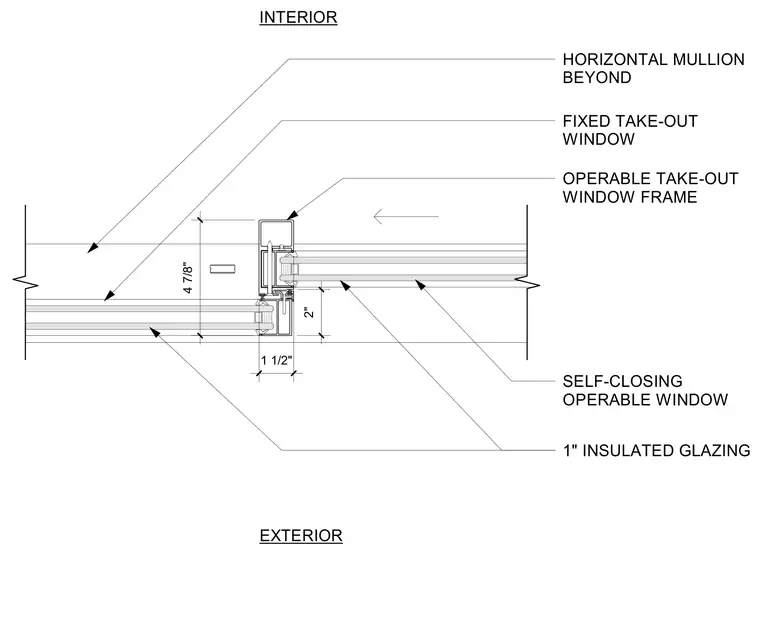

This horizontal section details a take-out window jamb assembly with a fixed take-out window and an adjacent self-closing operable window frame. The glazing consists of one-inch insulated glass units set within the window frames. A horizontal mullion is visible beyond the assembly. Dimension callouts include a four and seven-eighths inch clear opening and a two-inch frame depth with a one and one-half inch offset.
INTERIOR EXTERIOR HORIZONTAL MULLION BEYOND SELF-CLOSING OPERABLE WINDOW FIXED TAKE-OUT WINDOW OPERABLE TAKE-OUT WINDOW FRAME 1" INSULATED GLAZING 1 1/2" 4 7/8" 2"
