Architectural · A-RV4ZQ

Window Head and Canopy Transition at North Entry

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Windows Canopies Ceilings Entrances

Connections

Welded Connection

About this detail

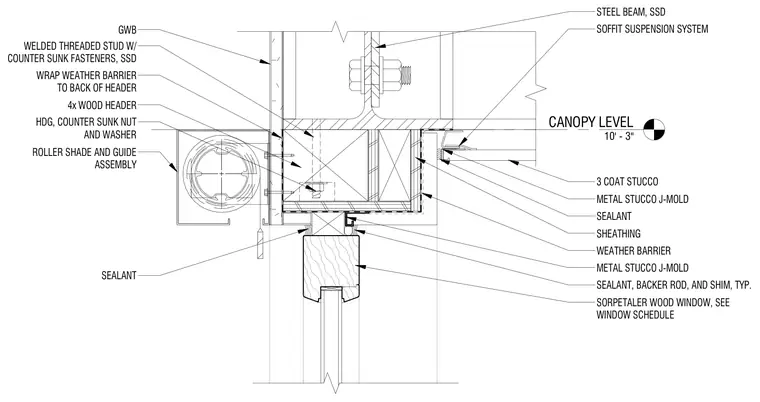

This window head and canopy transition detail features a wood window installed below a four-by wood header anchored with hot-dip galvanized countersunk nuts and washers. A welded threaded stud with countersunk fasteners secures the assembly to the structural steel beam at the canopy level. The exterior finish incorporates a three-coat stucco system over sheathing and weather barrier, terminated with metal stucco J-molds and sealed with backer rod and sealant. A roller shade and guide assembly is integrated at the interior head condition adjacent to the gypsum wall board, and a soffit suspension system frames the underside of the canopy level.
