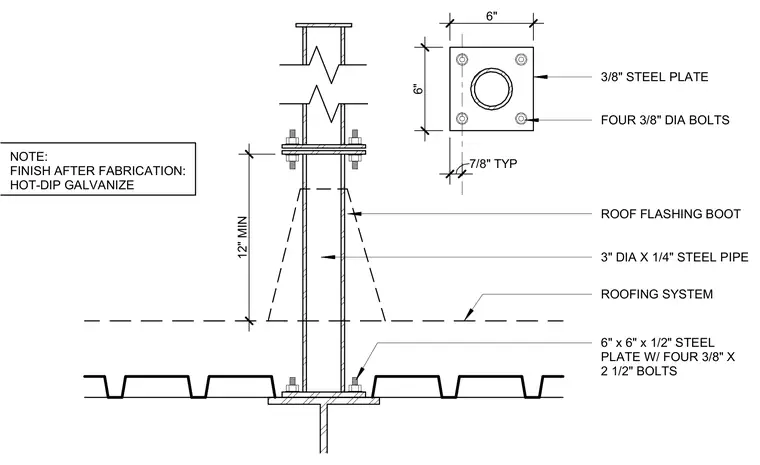

A three-inch diameter by one-quarter-inch thick steel pipe column penetrates through the roofing system and is secured to a structural support below with a six-inch by six-inch by one-half-inch steel plate and four three-eighths-inch by two-and-one-half-inch bolts. A roof flashing boot extends a minimum of twelve inches above the roof system around the pipe column. The pipe includes a bolted splice connection formed by two three-eighths-inch steel plates connected with four three-eighths-inch diameter bolts. The entire assembly is hot-dip galvanized after fabrication.
12" MIN 6" 6" 7/8" TYP 3/8" STEEL PLATE FOUR 3/8" DIA BOLTS 3" DIA X 1/4" STEEL PIPE ROOFING SYSTEM 6" x 6" x 1/2" STEEL PLATE W/ FOUR 3/8" X 2 1/2" BOLTS ROOF FLASHING BOOT NOTE: FINISH AFTER FABRICATION: HOT-DIP GALVANIZE
