Accessible Open Vanity with Undercounter Sink

Elements

Walls Floors / Slabs Millwork / Casework

About this detail

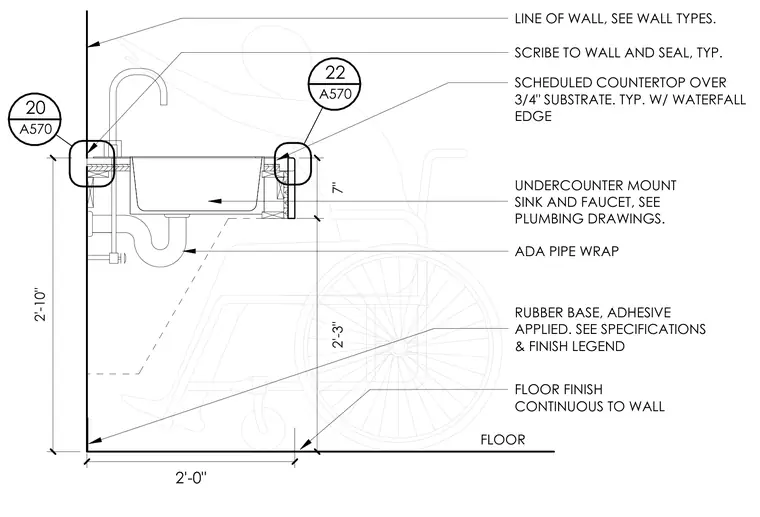

This accessible vanity assembly features a scheduled countertop supported by a three-quarter-inch substrate with a waterfall edge. An undercounter mount sink and faucet are installed per plumbing drawings, with an ADA pipe wrap protecting the trap and supply lines below. The countertop is set at two feet three inches above the continuous floor finish, maintaining a two-foot knee clearance depth and a two-foot ten-inch rim height. The backsplash is scribed to the wall and sealed with a typical joint, while a rubber base is adhered at the floor line.
