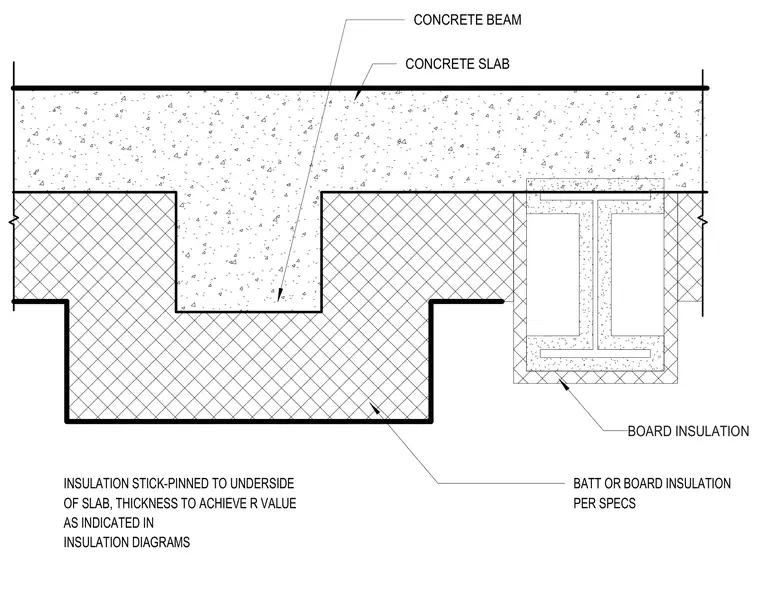

Batt or board insulation is applied to the underside of a concrete slab and concrete beam, with thickness determined to achieve the R-value indicated in the insulation diagrams. The insulation is stick-pinned to the underside of the slab per specifications.
CONCRETE SLAB CONCRETE BEAM BOARD INSULATION I N S U L A T I O N S T I C K - P I N N E D T O U N D E R S I D E O F S L A B , T H I C K N E S S T O A C H I E V E R V A L U E A S I N D I C A T E D I N I N S U L A T I O N D I A G R A M S B A T T O R B O A R D I N S U L A T I O N P E R S P E C S
