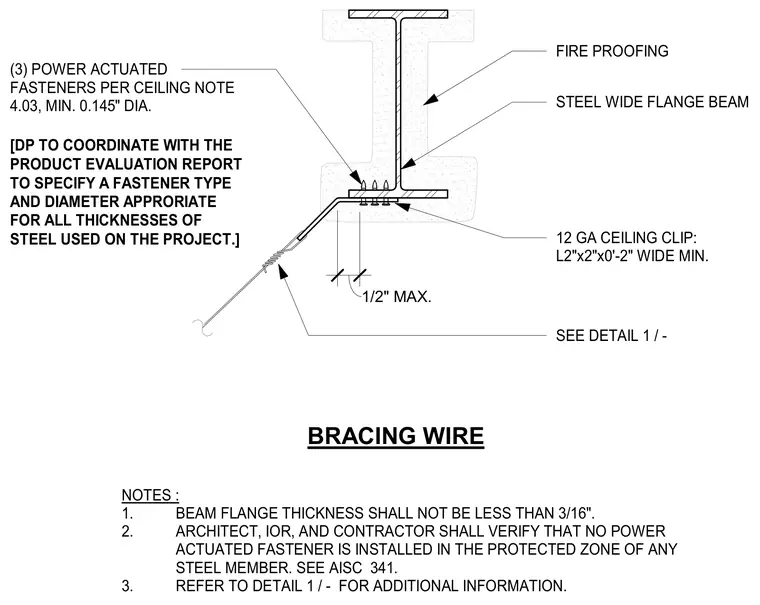

A ceiling bracing wire attaches to a steel wide flange beam bottom flange using a 12 gauge steel ceiling clip measuring 2 inches by 2 inches by 2 inches wide minimum. The clip is secured to the underside of the beam flange with three power-actuated fasteners having a minimum diameter of 0.145 inches. Fire proofing surrounds the steel wide flange beam. The bracing wire connects to the ceiling clip with a maximum half-inch offset.
BRACING WIRE FIRE PROOFING NOTES : 1. BEAM FLANGE THICKNESS SHALL NOT BE LESS THAN 3/16". 2. ARCHITECT, IOR, AND CONTRACTOR SHALL VERIFY THAT NO POWER ACTUATED FASTENER IS INSTALLED IN THE PROTECTED ZONE OF ANY STEEL MEMBER. SEE AISC 341. 3. REFER TO DETAIL 1 / - FOR ADDITIONAL INFORMATION. 1/2" MAX. 12 GA CEILING CLIP: L2"x2"x0'-2" WIDE MIN. STEEL WIDE FLANGE BEAM SEE DETAIL 1 / - (3) POWER ACTUATED FASTENERS PER CEILING NOTE 4.03, MIN. 0.145" DIA. [DP TO COORDINATE WITH THE PRODUCT EVALUATION REPORT TO SPECIFY A FASTENER TYPE AND DIAMETER APPRORIATE FOR ALL THICKNESSES OF STEEL USED ON THE PROJECT.]
