Architectural · A-RTS6W

1-Hour Rated Furring at Column

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

About this detail

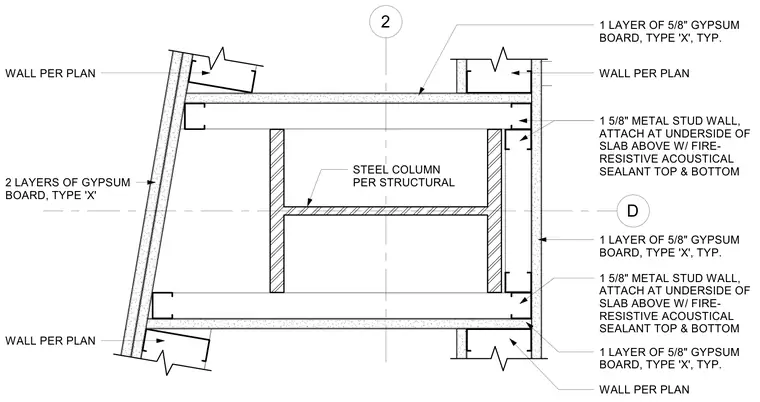

A structural steel column is enclosed with one-hour fire-rated gypsum board furring constructed from one-and-five-eighths-inch metal studs. The framing is attached at the underside of the slab above with fire-resistive acoustical sealant at the top and bottom. The exterior layers consist of one or two layers of five-eighths-inch Type X gypsum board as required for the rating, intersecting adjacent walls per plan.
