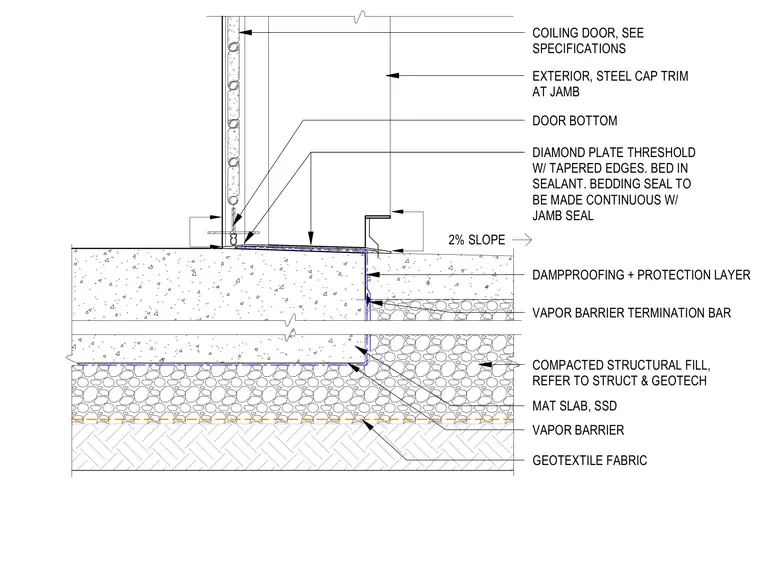

A coiling door threshold assembly bears on a concrete mat slab over geotextile fabric, vapor barrier, and compacted structural fill. A stainless steel diamond plate threshold with tapered edges rests on a continuous sealant bed integrated with the jamb seal. The exterior slab surface slopes away at two percent. Dampproofing with a protection layer and a vapor barrier termination bar protect the vertical slab edge. A steel cap trim is located at the coiling door jamb.
COMPACTED STRUCTURAL FILL, REFER TO STRUCT & GEOTECH MAT SLAB, SSD DIAMOND PLATE THRESHOLD W/ TAPERED EDGES. BED IN SEALANT. BEDDING SEAL TO BE MADE CONTINUOUS W/ JAMB SEAL 2% SLOPE GEOTEXTILE FABRIC EXTERIOR, STEEL CAP TRIM AT JAMB COILING DOOR, SEE SPECIFICATIONS DOOR BOTTOM VAPOR BARRIER VAPOR BARRIER TERMINATION BAR DAMPPROOFING + PROTECTION LAYER V 1 S -T 4 4 4 4 4 [ 4' ,4 4 mwwmm ' 4. '< 4 iA ; 4 AS ;i snxTAXTAxxenxxxTAer
