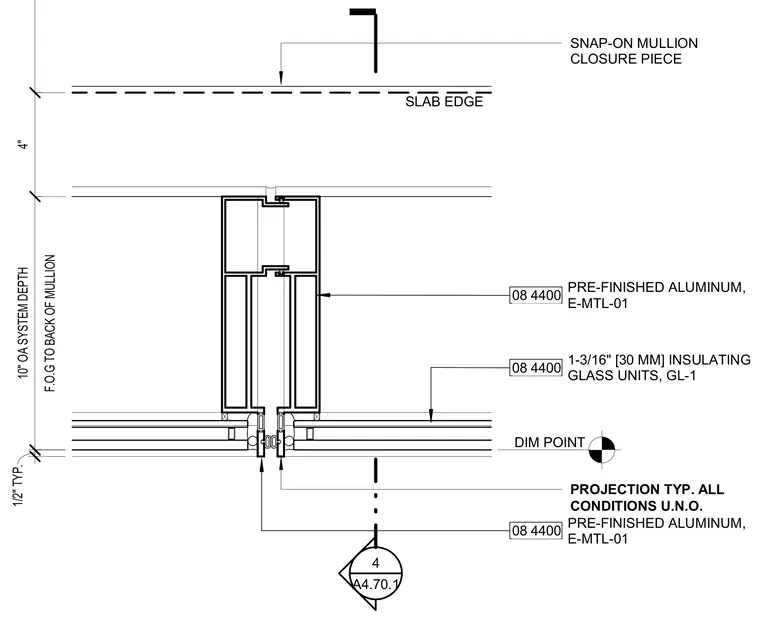

This plan detail shows a pre-finished aluminum curtain wall system featuring a ten-inch overall system depth with a snap-on mullion closure piece positioned near the slab edge. One-and-three-sixteenths-inch insulating glass units designated as GL-1 are set into the framing with a face of glass to back of mullion dimension of four inches. A typical one-half-inch projection applies to all conditions unless otherwise noted.
08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 08 4400 1-3/16" [30 MM] INSULATING GLASS UNITS, GL-1 F.O.G TO BACK OF MULLION 10" OA SYSTEM DEPTH 4" 1/2" TYP. PROJECTION TYP. ALL CONDITIONS U.N.O. SNAP-ON MULLION CLOSURE PIECE SLAB EDGE 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 4 A4.70.1 DIM POINT
