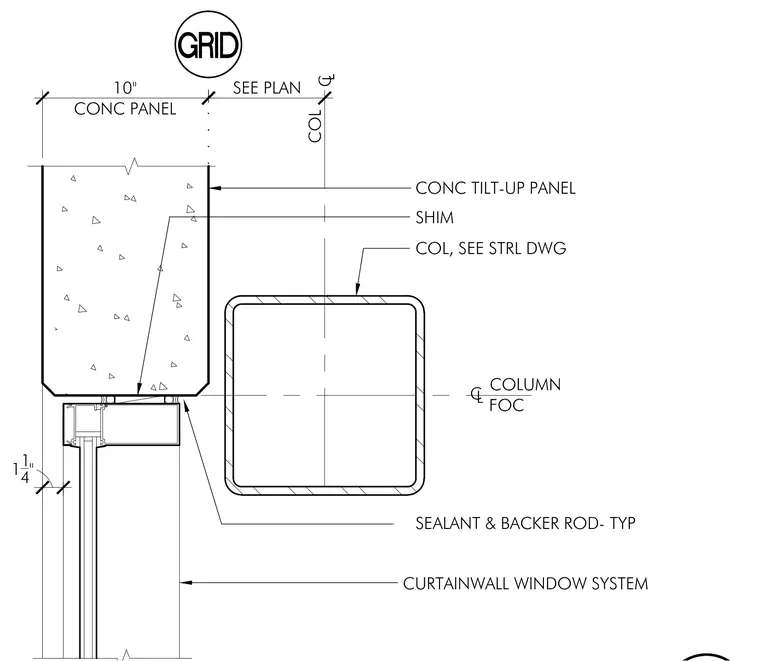

Junction between a 10-inch concrete tilt-up panel, a curtain wall window system, and a structural column located per structural drawings. Shims are placed between the concrete tilt-up panel and the adjacent assembly. A typical joint sealed with sealant and backer rod occurs at the window header interface. The structural column centerline aligns with the face of the column.
SEE PLAN COL COLUMN FOC 11 4" 10" CONC PANEL SEALANT & BACKER ROD- TYP CURTAINWALL WINDOW SYSTEM COL, SEE STRL DWG CL C L CONC TILT-UP PANEL SHIM
