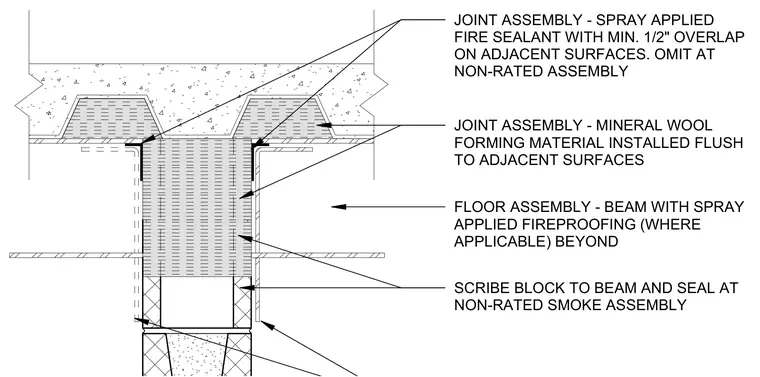

A fire-rated joint assembly occurs at the intersection of a concrete floor slab on metal deck and a wall partition. Mineral wool forming material is installed flush to adjacent surfaces within the joint gap. A spray-applied fire sealant is applied over the forming material with a minimum half-inch overlap on adjacent surfaces, omitted at non-rated assemblies. A scribe block is fitted to the beam and sealed at non-rated smoke assembly joints. A structural steel beam with spray-applied fireproofing is positioned beyond the joint assembly.
JOINT ASSEMBLY - SPRAY APPLIED FIRE SEALANT WITH MIN. 1/2" OVERLAP ON ADJACENT SURFACES. OMIT AT NON-RATED ASSEMBLY SCRIBE BLOCK TO BEAM AND SEAL AT NON-RATED SMOKE ASSEMBLY JOINT ASSEMBLY - MINERAL WOOL FORMING MATERIAL INSTALLED FLUSH TO ADJACENT SURFACES FLOOR ASSEMBLY - BEAM WITH SPRAY APPLIED FIREPROOFING (WHERE APPLICABLE) BEYOND
