Architectural · A-RT2XJ

Accessible Lavatory and Sink Clearance and Mounting Heights

Elements

About this detail

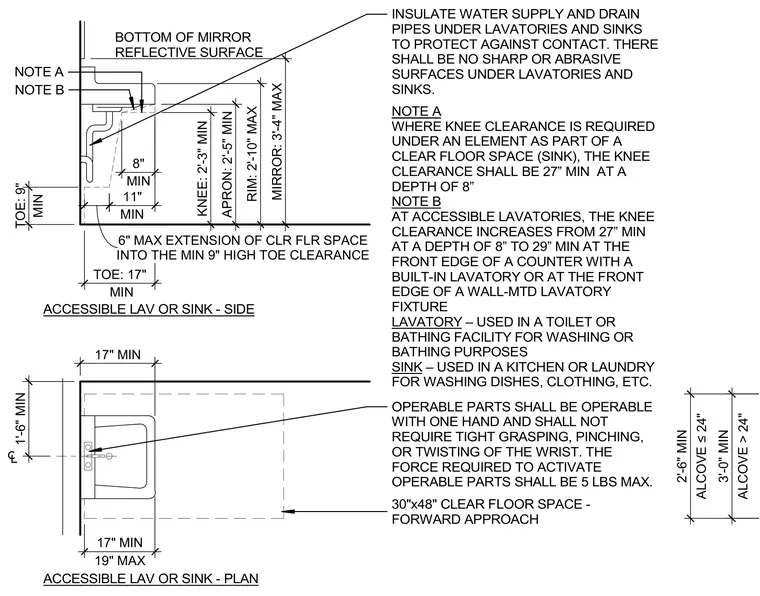

This drawing outlines the accessibility requirements for lavatories and sinks, detailing the side profile and plan view dimensions for forward approach. The side view specifies a maximum rim height of 2-feet 10-inches, an apron clearance of 2-feet 5-inches minimum, a knee clearance of 2-feet 3-inches minimum at an 8-inch minimum depth, and a 9-inch minimum toe clearance extending 17 inches minimum into the space. Additional notes mandate insulating water supply and drain pipes to protect against contact and eliminating sharp or abrasive surfaces underneath. Operable parts must be operable with one hand without tight grasping, pinching, or twisting, requiring a maximum force of 5 pounds. The plan view shows a 30-inch by 48-inch clear floor space for forward approach with specific side clearances.
