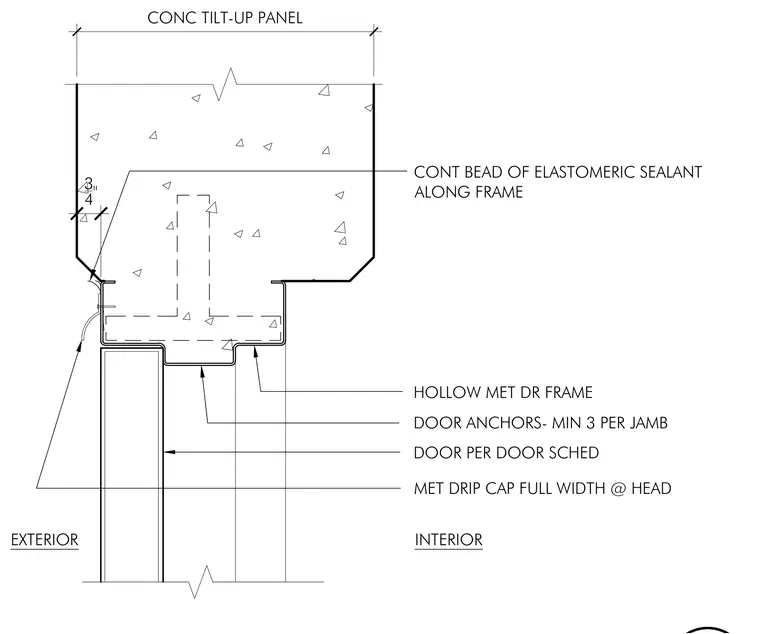

A hollow metal door frame is set into a concrete tilt-up wall panel with a minimum of three door anchors per jamb. A continuous bead of elastomeric sealant is applied along the frame interface. A metal drip cap spans the full width at the head on the exterior side above the door.
HOLLOW MET DR FRAME DOOR PER DOOR SCHED INTERIOR EXTERIOR CONT BEAD OF ELASTOMERIC SEALANT ALONG FRAME DOOR ANCHORS- MIN 3 PER JAMB CONC TILT-UP PANEL MET DRIP CAP FULL WIDTH @ HEAD 3 4"
