Structural · A-RSYFC

Typical Panel Reinforcement

Materials

Elements

Beams Walls Floors / Slabs Reinforcing Roof / Floor Openings

About this detail

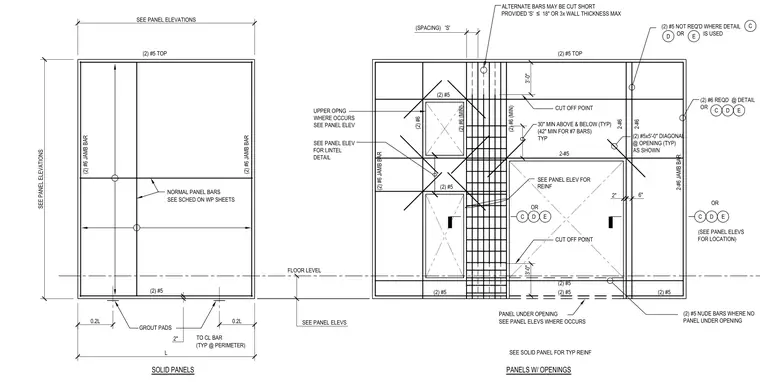

Typical concrete wall panel reinforcement layout detailing reinforcing bar sizes, jamb bars, and opening corner diagonals for solid panels and panels with openings. The solid panel diagram indicates two number five top bars, two number six jamb bars on each side, normal panel reinforcing bars sized per schedules, and two number five bottom bars with two inches clearance to the centerline of the bar at the perimeter, set over grout pads at length intervals of zero point two times L. The panel with openings diagram shows extended jamb bars around window or door penetrations, including two number six minimum jamb bars, two number five bars above and below openings extending thirty inches minimum past the opening, and two number five by five foot diagonal bars at each opening corner. Additional callouts specify alternate bar spacing restrictions where spacing S is less than or equal to eighteen inches or three times the wall thickness maximum.
