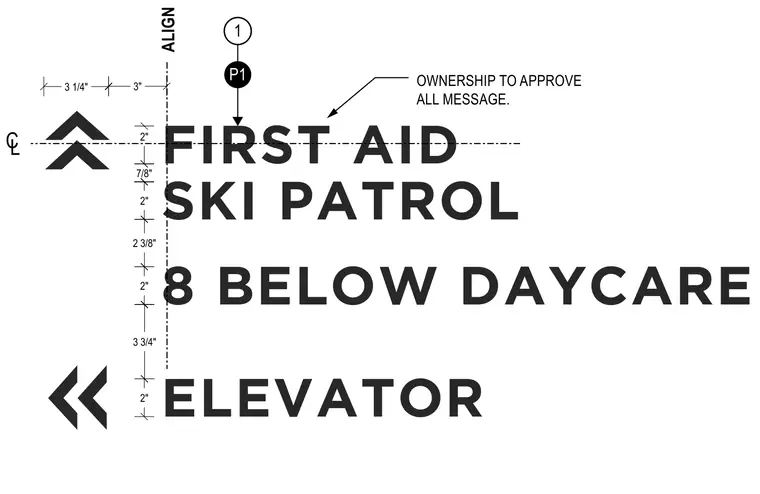

Dimensional layout for wall signage with text reading FIRST AID SKI PATROL, 8 BELOW DAYCARE, and ELEVATOR, including alignment centerlines and vertical and horizontal spacing dimensions ranging from 7/8 inch to 3 3/4 inches. A callout specifies that ownership must approve all messaging.
FIRST AID SKI PATROL 8 BELOW DAYCARE ELEVATOR P1 1 ALIGN 2" 2 3/8" 2" 2" 2" 3" 3 1/4" 7/8" 3 3/4" OWNERSHIP TO APPROVE ALL MESSAGE.
