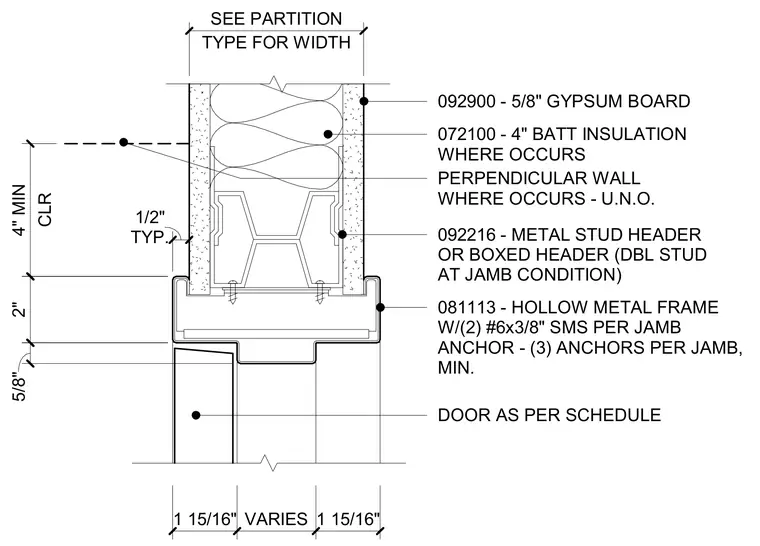

This hollow metal door head and jamb assembly is constructed within a metal stud partition framing system. The partition is framed using a metal stud header or boxed header with double studs at the jamb condition, finished on both sides with five-eighths inch gypsum board and four-inch batt insulation installed where required. A hollow metal frame is secured to the framing using two number six by three-eighths inch sheet metal screws per jamb anchor, with a minimum of three anchors per jamb. The door itself is installed according to the door schedule with specified dimensional clearances.
2" 092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081113 - HOLLOW METAL FRAME W/(2) #6x3/8" SMS PER JAMB ANCHOR - (3) ANCHORS PER JAMB, MIN. 092900 - 5/8" GYPSUM BOARD CLR 4" MIN PERPENDICULAR WALL WHERE OCCURS - U.N.O. DOOR AS PER SCHEDULE 1 15/16" VARIES 1 15/16" TYP. 1/2" TYPE FOR WIDTH SEE PARTITION 5/8" 072100 - 4" BATT INSULATION WHERE OCCURS
