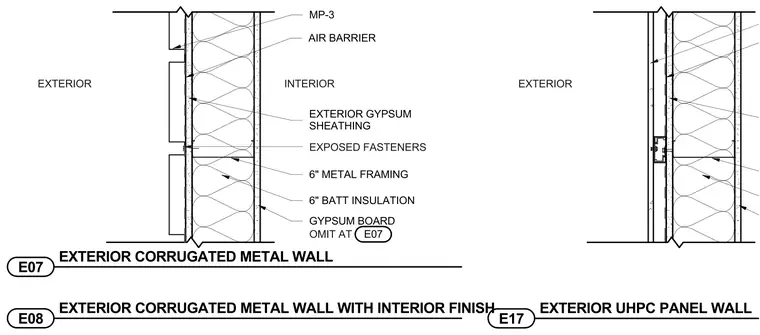

This exterior corrugated metal wall assembly consists of MP-3 metal panels secured with exposed fasteners over an air barrier and exterior gypsum sheathing. The core of the wall is built with six-inch metal framing filled with six-inch batt insulation. The interior side features a gypsum board finish, which is omitted at detail E07.
OMIT AT EXTERIOR INTERIOR E07 EXTERIOR CORRUGATED METAL WALL E08 EXTERIOR CORRUGATED METAL WALL WITH INTERIOR FINISH E07 GYPSUM BOARD 6" METAL FRAMING AIR BARRIER EXTERIOR GYPSUM SHEATHING 6" BATT INSULATION MP-3 EXPOSED FASTENERS EXTERIOR E17 EXTERIOR UHPC PANEL WALL
