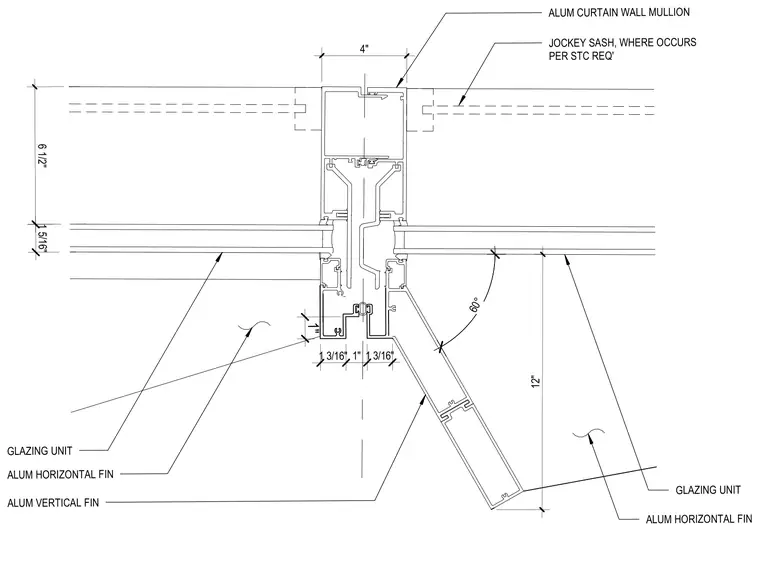

An aluminum curtain wall mullion forms the outer corner assembly, integrating a six-and-a-half-inch profile with a four-inch dimension and a sixty-degree angled vertical fin. Glazing units measuring one and five-sixteenths inches thick frame into the framing system alongside horizontal fins. A jockey sash is included where required per sound transmission class specifications.
1 5/16" 6 1/2" GLAZING UNIT GLAZING UNIT ALUM HORIZONTAL FIN ALUM HORIZONTAL FIN ALUM CURTAIN WALL MULLION 12" 4" 60° ALUM VERTICAL FIN JOCKEY SASH, WHERE OCCURS PER STC REQ' 1 3/16" 1" 1 3/16" 1"
