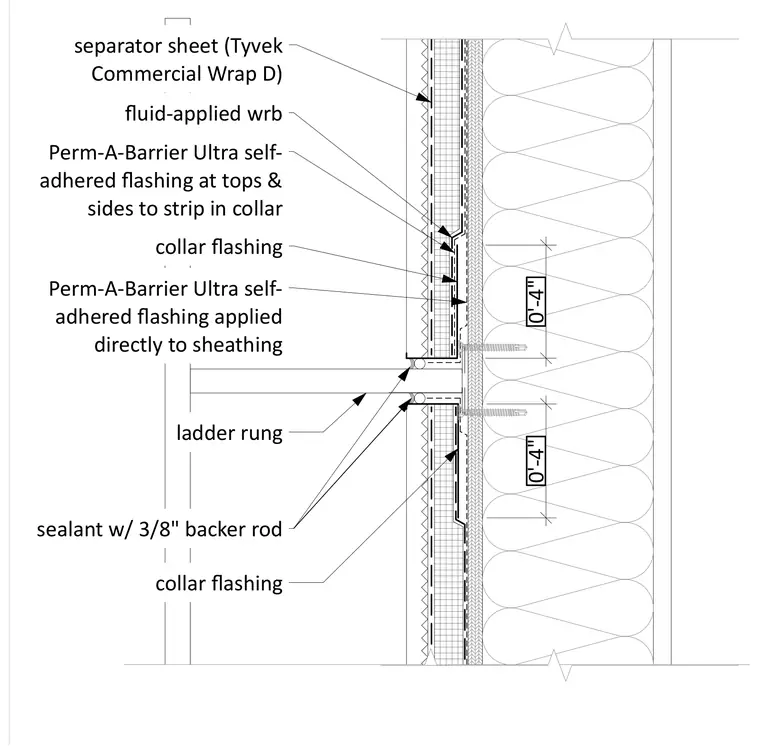

This wall penetration detail features a ladder rung penetrating the exterior assembly with a complex multi-layer waterproofing system. Perm-A-Barrier Ultra self-adhered flashing is applied directly to the sheathing and stripped in at the top and sides of the collar flashing. A fluid-applied water-resistive barrier and a Tyvek Commercial Wrap D separator sheet provide additional weather protection. The joint around the penetration is sealed with sealant and a three-eighths-inch backer rod.
0'-4" 0'-4" ladder rung fluid-applied wrb separator sheet (Tyvek Commercial Wrap D) sealant w/ 3/8" backer rod Perm-A-Barrier Ultra self- adhered flashing applied directly to sheathing collar flashing collar flashing Perm-A-Barrier Ultra self- adhered flashing at tops & sides to strip in collar
