Architectural · A-RSAX7

Hollow Metal Door Frame Jamb

Materials

Concrete Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Partitions Doors Storefronts Floors / Slabs Expansion / Control Joints Insulation Anchors / Embeds Roof / Floor Openings

Connections

Expansion / Slip Connection

About this detail

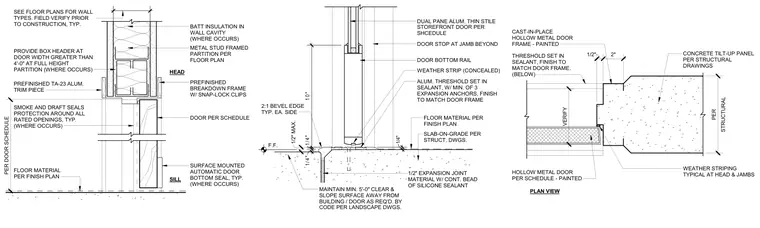

A hollow metal door frame and threshold assembly anchors to a concrete tilt-up panel and metal stud framed partition. The head and sill conditions feature weather stripping, prefinished aluminum trim pieces, smoke and draft seals, and an automatic door bottom seal. The threshold is set in sealant over a slab-on-grade with a one-half-inch expansion joint material and a continuous bead of silicone sealant. A dual pane aluminum thin stile storefront door is integrated with concealed weather stripping and an aluminum threshold secured with expansion anchors.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
