Architectural · A-RS8YH

Cable Railing and Concrete Upturn Beam Plan Detail

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Facades / Cladding Stairs Railings / Guards

Connections

HSS Connection

About this detail

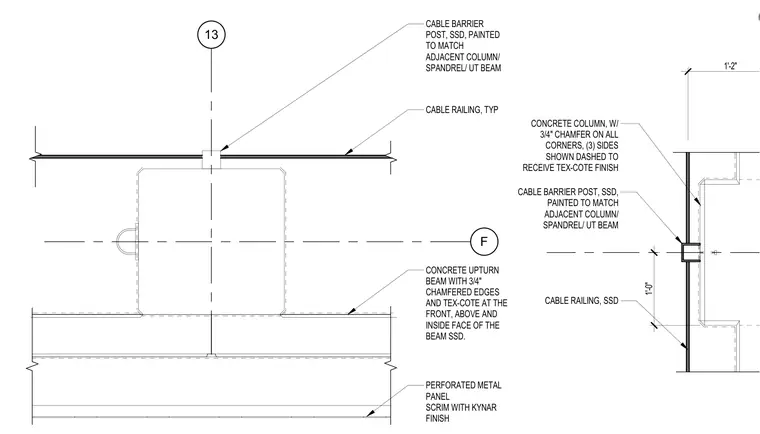

A cable railing and barrier post are anchored alongside a one-foot-two-inch concrete column with three-quarter-inch chamfers on all corners and a Tex-Cote finish on three dashed sides. A concrete upturn beam features three-quarter-inch chamfered edges and a Tex-Cote finish on the front, top, and inside faces. A perforated metal panel scrim with a Kynar finish is positioned below the beam. The painted cable barrier posts and typical cable railing extend continuously along the assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
