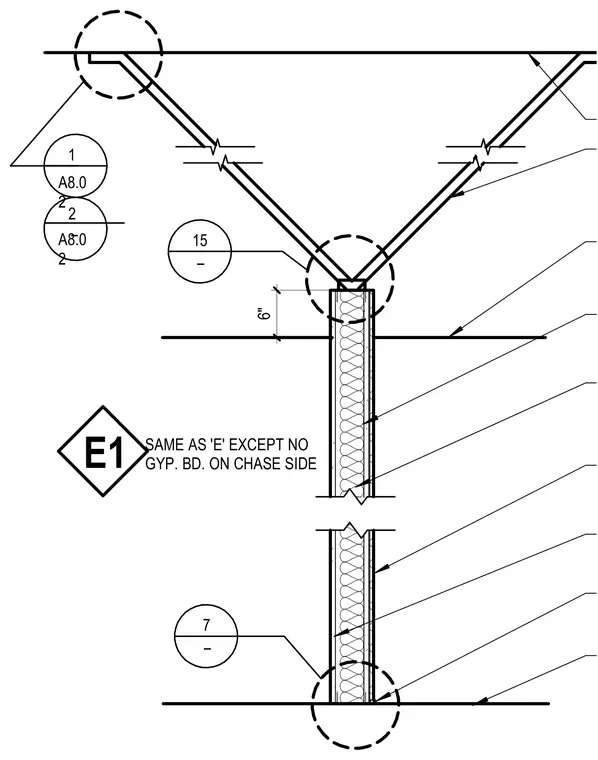

An interior partition type E1 features gypsum board on one side with a chase side left without gypsum board, framing a six-inch chase space. Insulation fills the stud cavity between the layers of gypsum wallboard. The assembly terminates at floor and ceiling junctions with specific connection details.
1 7 E1 SAME AS 'E' EXCEPT NO GYP. BD. ON CHASE SIDE 2 15 A8.0 2 A8.0 2 6"
