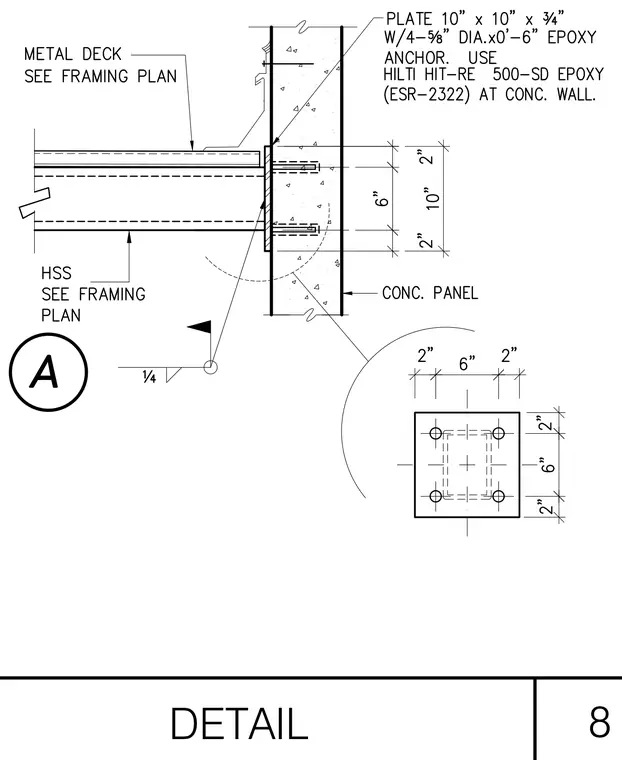

A hollow structural section beam with a metal deck frames into a concrete panel. The connection utilizes a ten-inch by ten-inch by three-quarter-inch steel plate anchored to the concrete wall with four five-eighths-inch diameter by six-inch epoxy anchors using Hilti HIT-RE 500-SD epoxy per ESR-2322. The plate features a six-inch center-to-center bolt pattern with two-inch edge clearances, and is welded to the steel framing member with a one-quarter-inch fillet weld.
