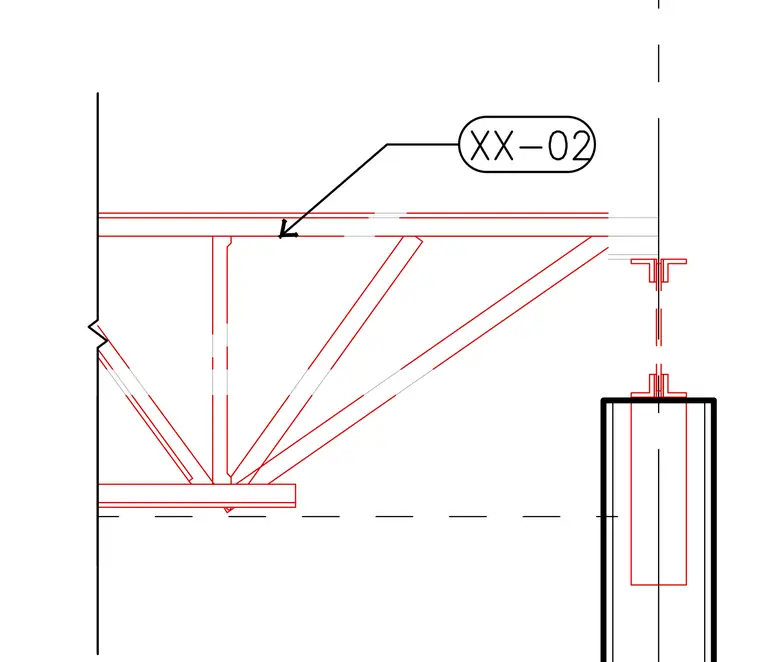

A structural steel truss bears onto a vertical column support with a detail reference callout. The assembly indicates typical structural framing connections for industrial or commercial roof and floor systems.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
