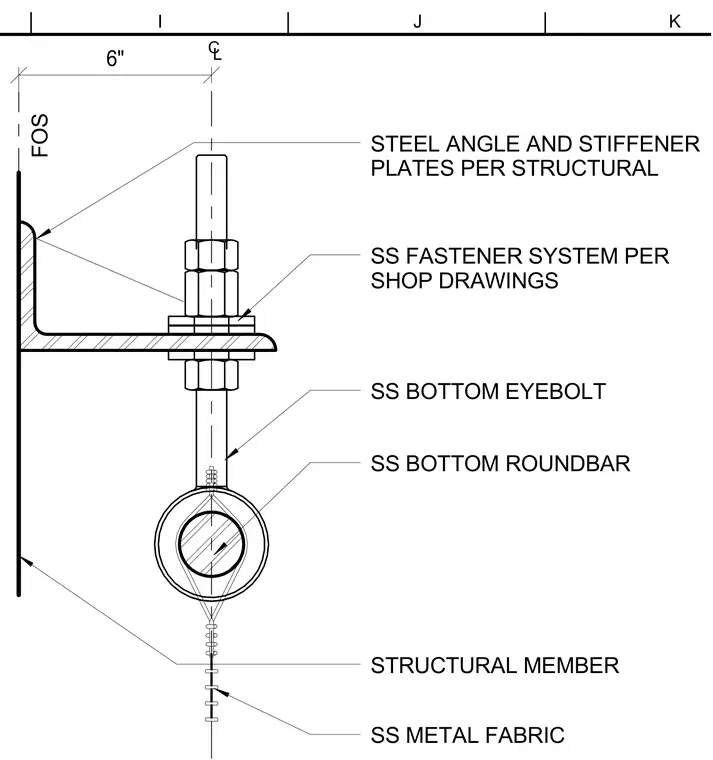

A structural steel angle with stiffener plates connects to a structural member at a six-inch offset. A stainless steel fastener system secures a stainless steel bottom eyebolt running vertically through the horizontal leg of the angle. A stainless steel roundbar passes through the loop of the eyebolt to support the stainless steel metal fabric below. All fastening and hardware configurations are installed per shop drawings.
STRUCTURAL MEMBER STEEL ANGLE AND STIFFENER PLATES PER STRUCTURAL SS BOTTOM ROUNDBAR SS METAL FABRIC SS FASTENER SYSTEM PER SHOP DRAWINGS SS BOTTOM EYEBOLT L C 6" FOS K J I
