Grade-level exterior and interior exit and egress sign types feature raised lettering and Grade 2 braille with an ADA compliant non-glare matte finish. The square exit sign measures six inches by six inches with a one-quarter inch letter height. The rectangular exit route sign measures five inches wide by four inches high with a one-quarter inch letter height.

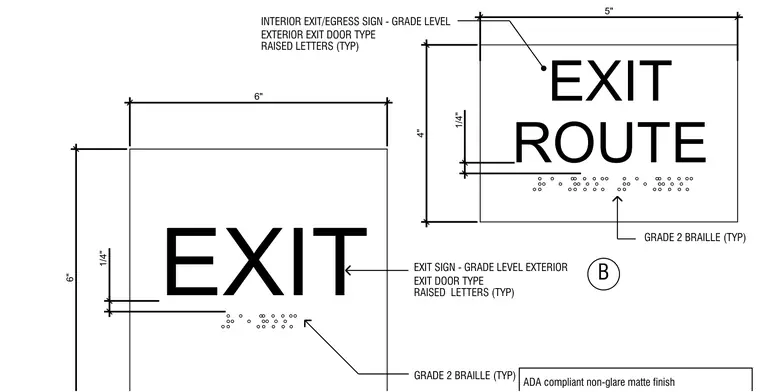

RAISED LETTERS (TYP) EXIT SIGN - GRADE LEVEL EXTERIOR EXIT DOOR TYPE GRADE 2 BRAILLE (TYP) 1/4" 6" 6" EXIT EXIT ROUTE RAISED LETTERS (TYP) INTERIOR EXIT/EGRESS SIGN - GRADE LEVEL EXTERIOR EXIT DOOR TYPE 1/4" 4" 5" GRADE 2 BRAILLE (TYP) B ADA compliant non-glare matte finish
