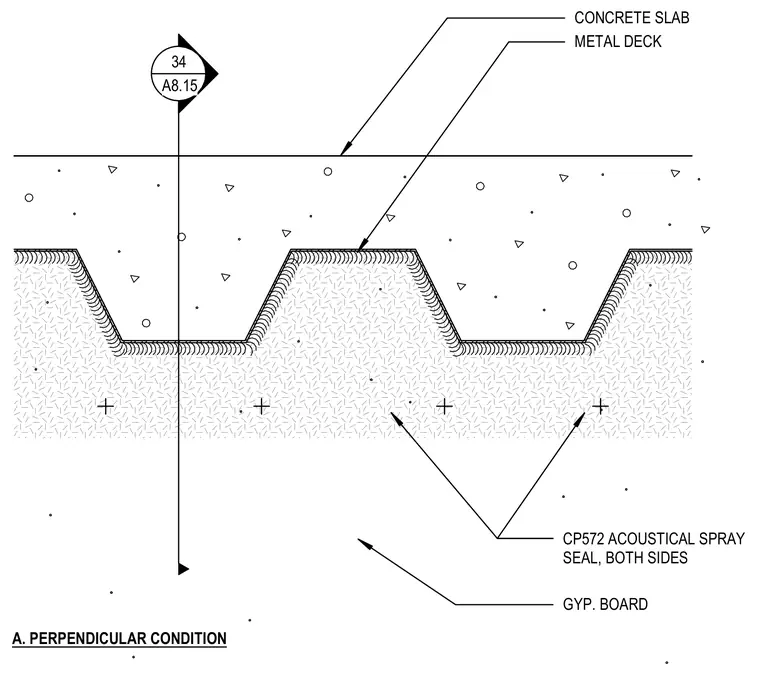

An interior gypsum board partition intersects a concrete slab over a fluted metal deck perpendicularly. Acoustical spray seal is applied to both sides of the partition where it meets the corrugated underside of the deck to maintain sound isolation.
A. PERPENDICULAR CONDITION GYP. BOARD 34 A8.15 METAL DECK CONCRETE SLAB CP572 ACOUSTICAL SPRAY SEAL, BOTH SIDES
