Architectural · A-RQX6Q

Typical Stair Guardrail and Handrail Section

Materials

Concrete Steel

Elements

Walls Stairs Railings / Guards Floors / Slabs Connections / Plates

Connections

HSS Connection

About this detail

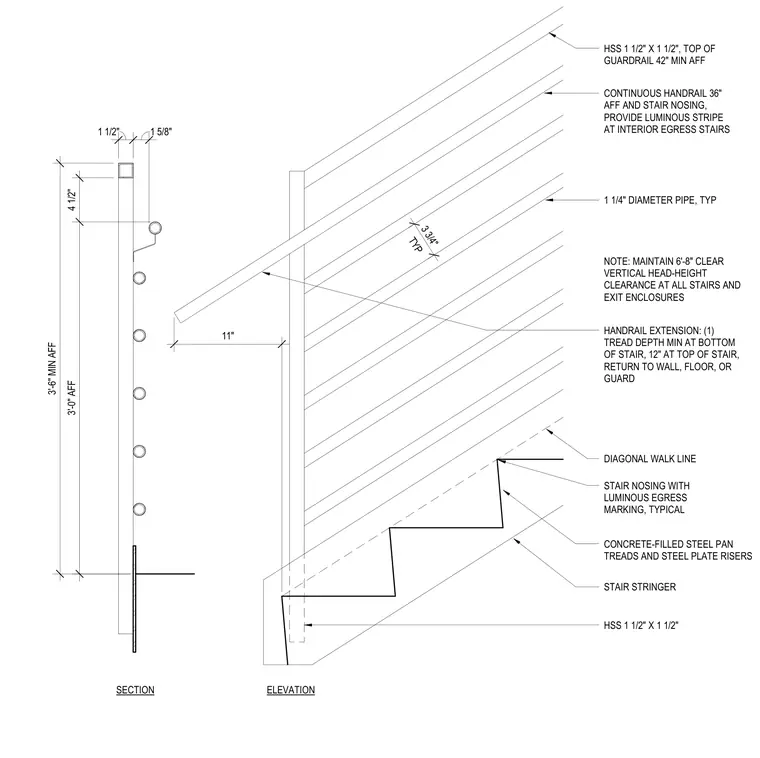

A typical stair guardrail and handrail assembly is supported by a stair stringer and hollow structural section framing. Concrete-filled steel pan treads with steel plate risers form the stair carriage, incorporating stair nosings with luminous egress markings. The guardrail stands at a minimum of forty-two inches above the finished floor, constructed with one-and-a-half by one-and-a-half-inch hollow structural sections and one-and-a-quarter-inch diameter pipe rails. A continuous handrail is positioned at thirty-six inches above the finished floor, featuring required extensions at the top and bottom of the stair run. A minimum head-height clearance of six feet eight inches is maintained along the diagonal walk line.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
