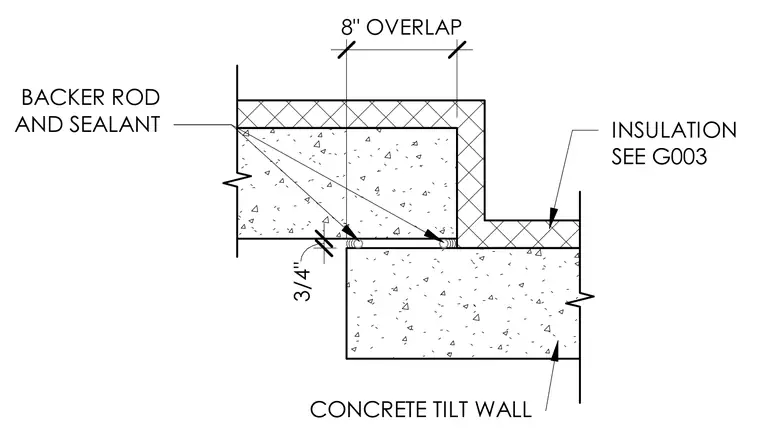

An offset joint connects adjacent concrete tilt-up wall panels with an eight-inch panel overlap and a three-quarter-inch joint gap. The vertical joint is sealed with a backer rod and sealant placed at the exterior intersection. Insulation continuous across the offset is detailed per sheet G003.
