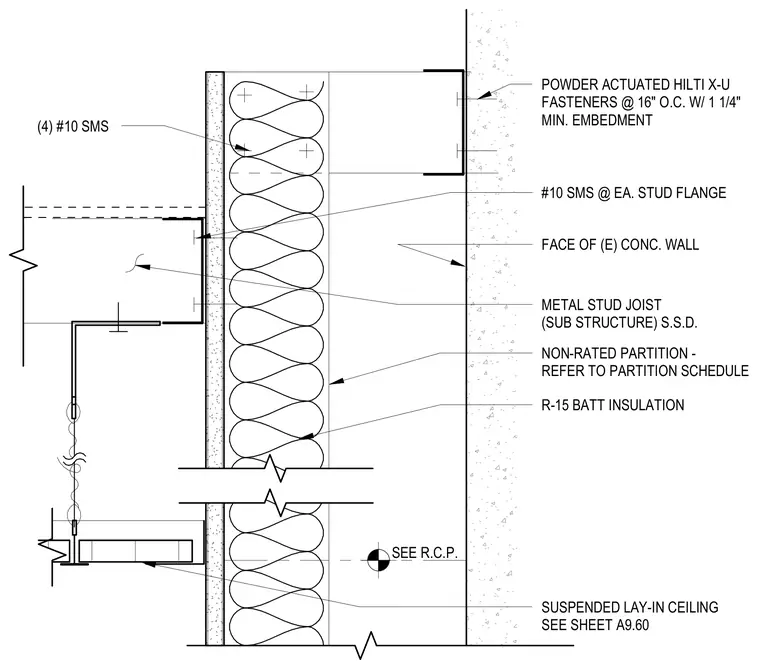

A non-rated metal stud partition terminates against the face of an existing concrete wall, incorporating R-15 batt insulation within the stud cavity. The partition sub-structure features a metal stud joist secured to the concrete wall using powder-actuated Hilti X-U fasteners spaced at 16 inches on center with a 1 1/4 inch minimum embedment. Number 10 sheet metal screws fasten each stud flange. A suspended lay-in ceiling abuts the partition assembly as indicated on the reflected ceiling plan.
METAL STUD JOIST (SUB STRUCTURE) S.S.D. NON-RATED PARTITION - REFER TO PARTITION SCHEDULE R-15 BATT INSULATION #10 SMS @ EA. STUD FLANGE SEE R.C.P. FACE OF (E) CONC. WALL SUSPENDED LAY-IN CEILING SEE SHEET A9.60 POWDER ACTUATED HILTI X-U FASTENERS @ 16" O.C. W/ 1 1/4" MIN. EMBEDMENT (4) #10 SMS
